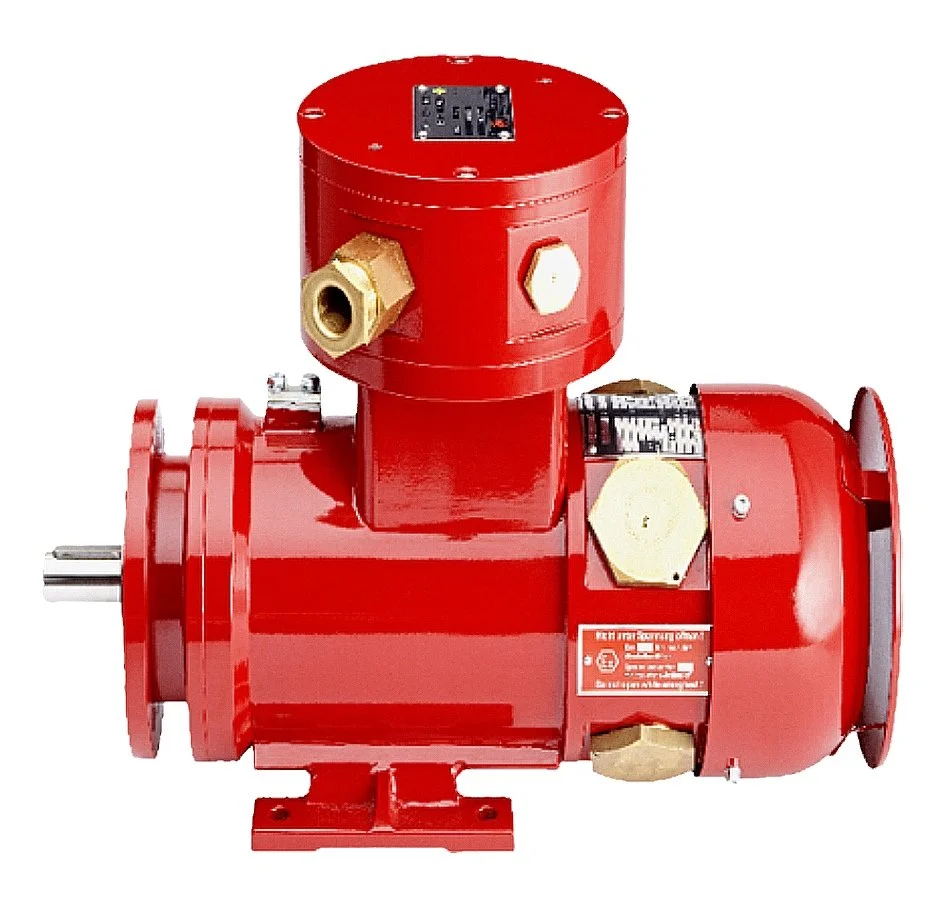

EXPLOSION PROOF MOTORS
Ex db IIC T4 Gb
Class 1 Zone 1 AEX db IIc T4 Gb
Class 1 DIV. 2 Group ABCD T4
For an ambient temperature range of -55°C to +40°C.
Power stations
Offshore facilities
Chemical industry
Gas distribution plants
Gas expansion plants
Gas compressor stations
Energy production
Sample applications:
Output range: 0,25 kW to 80 kW
Voltage range: 24 V DC to 630 V DC
Speed range: 750 to 3600 rpm
Enclosures: IP 54 to IP 65
Temperature range: -60°C to +80°C
Explosion group IIC, temperature class T3-T6
Depending on the specific use, the drives can be equipped with brake, engine speed sensor or gearbox as well as various monitoring devices.
Protection against aggressive ambient conditions by a special coating system
CAMIS is a leading manufacturer and distributor of engineering solutions to industry. Each of the companies is committed to providing the widest range of products and services available in the UK.
We are UK and Middle East distributors for Winkelmann products.
